HLX Horizontal Commercial Pool Filters

Special Resins provide a watertight & anti-corrosive barrier

HLX Horizontal Commercial Pool Filters are manufactured with a liner employing special resins that form a watertight and anti-corrosive barrier that gives a high resistance to chemicals. HLX Bobbin Wound Horizontal Commercial Pool Filters are also suitable for salt water pools. An outer fibre-glass shell is applied to the liner, using the bobbin winding process giving the finished tank its final working and test ratings.

The standard filter is manufactured with a polyester shell.

For ozone systems a vinylester shell is available upon request. Includes pressure gauge panel. Working pressure: 2.5kg/cm2 / 35.56 psi / 2.45 bar Test pressure: 3.75kg/cm2 / 53.3 psi / 3.68 bar Special working pressure: 4kg / cm2 working pressure Maximum temperature: 50°C Available Options: Bed depths 0.6 metre, 1 metre and 1.2 metre.

HLX Horizontal Pool Filter Standard Features

Polyester shell lining
Polypropylene arm collectors
Automatic air relief valve
PVC distribution pipework
Ø400mm bolted top access hatch
Ø400mm bolted side access
Pressure gauge panel
Flanged inlet and outlet connections
Sand and water drain port

HLX Pool Filter - Ø2.0m Horizontal Bobbin Wound - 1.0m Bed Depth
Model	Length	Connections	Flow	Filtration	Ex Vat	Inc Vat
HLX2500110	2500mm long	110mm connections	75m3/ hr flow	15m3/hr/m2 filtration	£17,865.75	£21,438.90
HLX3000125	3000mm long	125mm connections	80m3/ hr flow	15m3/hr/m2 filtration	£19,318.25	£23,181.90
HLX3500140	3500mm long	140mm connections	105m3/ hr flow	15m3/hr/m2 filtration	£20,252.00	£24,302.40
HLX2500125	2500mm long	125mm connections	100m3/ hr flow	20m3/hr/m2 filtration	£18,127.20	£21,752.64
HLX3000140	3000mm long	140mm connections	120m3/ hr flow	20m3/hr/m2 filtration	£19,505.00	£23,406.00
HLX3500160	3500mm long	160mm connections	140m3/ hr flow	20m3/hr/m2 filtration	£20,667.00	£24,800.40
HLX2500160	2500mm long	160mm connections	150m3/ hr flow	30m3/hr/m2 filtration	£18,214.35	£21,857.22
HLX3000160	3000mm long	160mm connections	180m3/ hr flow	30m3/hr/m2 filtration	£19,712.50	£23,655.00
HLX3500200	3500mm long	200mm connections	210m3/ hr flow	30m3/hr/m2 filtration	£21,106.90	£25,328.28
HLX2500200	2500mm long	200mm connections	200m3/ hr flow	40m3/hr/m2 filtration	£18,911.55	£22,693.86
HLX3000200	3000mm long	200mm connections	240m3/ hr flow	40m3/hr/m2 filtration	£20,999.00	£25,198.80
HLX3500225	3500mm long	225mm connections	280m3/ hr flow	40m3/hr/m2 filtration	£21,646.40	£25,975.68
HLX3000225	3000mm long	225mm connections	300m3/ hr flow	50m3/hr/m2 filtration	£21,106.90	£25,328.28

HLX Pool Filter end dimensions view

Certikin HLX Horizontal Commercial Pool Filter end dimensions

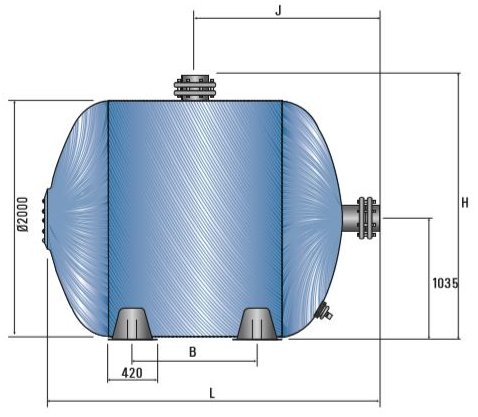

HLX Pool Filter side dimensions view

Certikin HLX Horizontal Commercial Pool Filter side dimensions

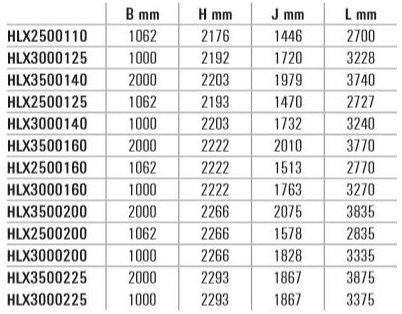

HLX Horizontal Pool Filter dimensions

HLX Horizontal Commercial Pool Filter dimensions chart

Weight:: 1.00 KGS
