Astral Aral C-3000 Centrifugal Commercial Swimming Pool Pump
Astral
- Shipping:
Astral Aral C-3000 Centrifugal Commercial Swimming Pool Pump

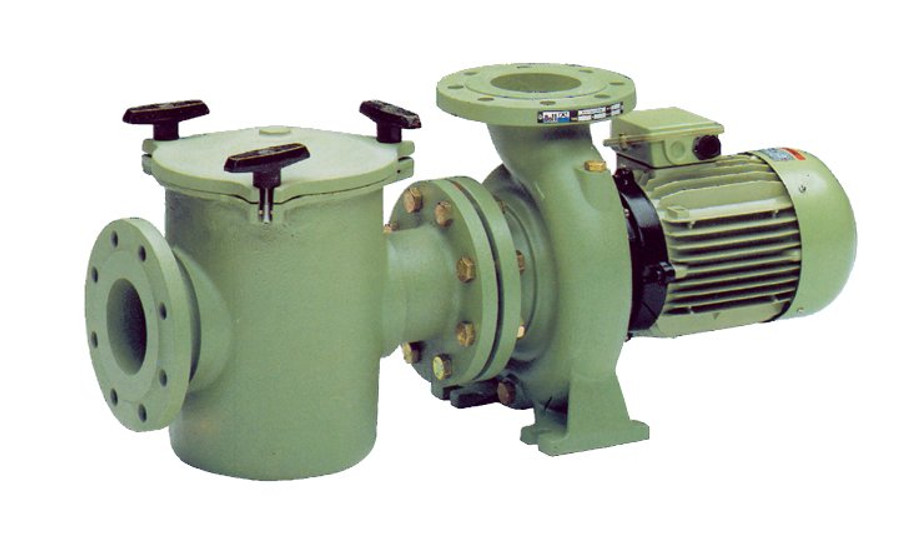

The Aral C-3000 Centrifugal Pump has a horizontal attached pre-filter with an stainless steel AISI-304 basket. Suiting commercial swimming pools. With a performance of up to 3000 RPM this pump along with the body, impeller, pre-filter and bracket are manufactured in cast iron. The mechanic seal is made of stainless steel AISI-316 and the motor holds an IP-54 protection rating. With motors ranging from 3 HP to 25 HP.
Features:
- Manufactured from Cast Metal
- Flows of up to 275 M3/H at 10 m.w.h
- One Piece Cast Iron Base
- Can be Used in Salt Water
Performance Chart:
Code
|
Power
|
Connection
|
Voltage
|
m.w.h
| |||||
---|---|---|---|---|---|---|---|---|---|
8
|
10
|
12
|
14
|
16
|
20
|
||||
m3/h
|
|||||||||
09193
|
2.20 kW (3HP)
|
DN 90-3"
|
230/400 V III
|
59
|
54
|
46
|
40
|
30
|
0
|
01195
|
2.95 kW (4HP)
|
DN 80-3"
|
400/690 V III
|
67
|
61
|
55
|
48
|
40
|
0
|
01197
|
4.00 kW (5.5HP)
|
DN 80-3"
|
400/690 V III
|
78
|
72
|
66
|
60
|
52
|
0
|
01199
|
4.00 kW (5.5HP)
|
DN 100-4"
|
400/690 V III
|
100
|
89
|
70
|
60
|
48
|
0
|
01201
|
5.50 kW (7.5HP)
|
DN 100-4"
|
400/690 V III
|
126
|
115
|
100
|
80
|
60
|
0
|
01203
|
7.50 kW (10HP)
|
DN 100-4"
|
400/690 V III
|
145
|
140
|
123
|
107
|
86
|
0
|
01205
|
8.70 kW (12.5HP)
|
DN 125-5"
|
400/690 V III
|
165
|
158
|
149
|
135
|
115
|
0
|
01207
|
11.04 kW (12.5HP)
|
DN 125-5"
|
400/690 V III
|
195
|
190
|
175
|
160
|
140
|
0
|
Curve Chart:
The Astral Aral C-3000 Centrifugal Swimming Pool Pump also comes with a IE 2 Motors Compliance Rating
- Weight:
- 0.10 KGS
Technical Specifications
